| Kalite peman: | L/C,T/T,D/P |
| Transpòtasyon: | Ocean,Land,Air,Express,others |
| Port: | shanghai,ningbo,huaian |
Brand: Cepai
| Vann Inite | : | Piece/Pieces |
| Kalite pake | : | Bwat |
The file is encrypted. Please fill in the following information to continue accessing it
Deskripsyon pwodwi:

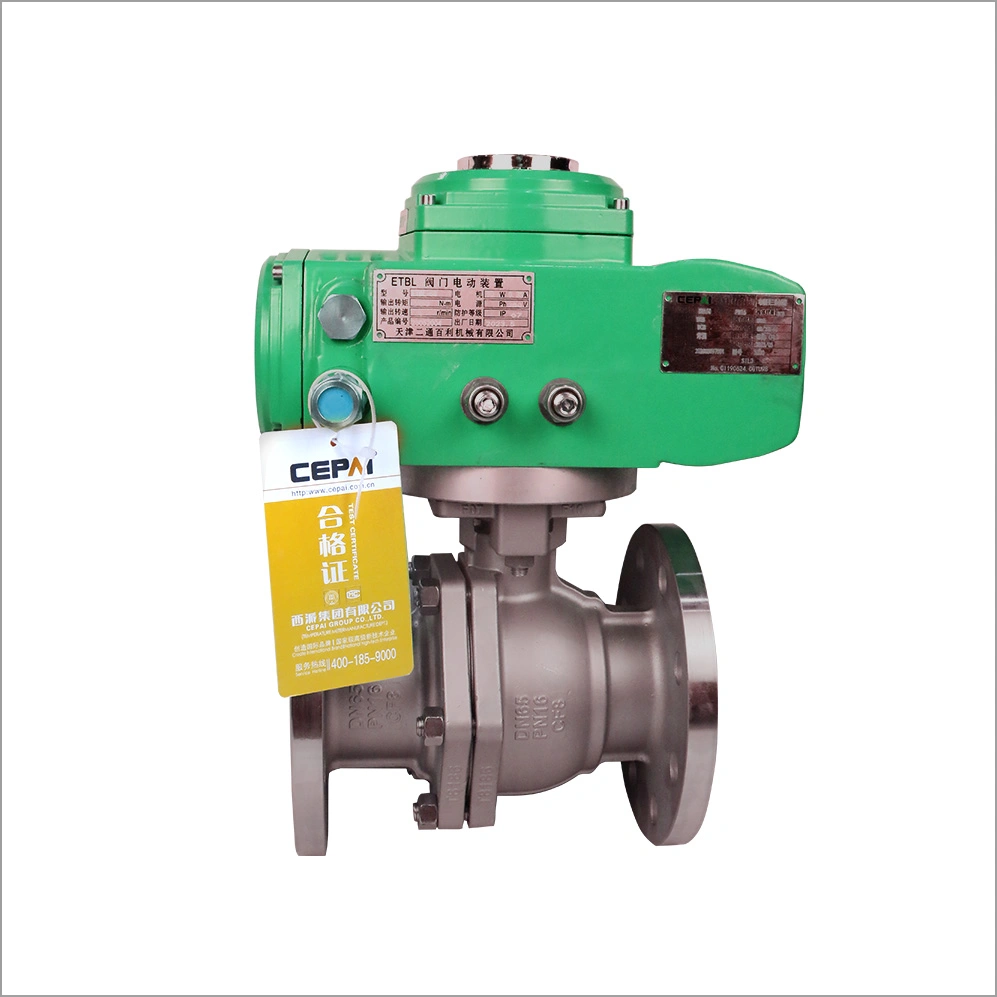

Elektrik o-kalite boul tiyo gen karakteristik sa yo nan rezistans, vit oblije chanje, sere sele, kontwòl likid, kontwòl otomatik, sekirite ak disponiblite, elatriye, epi yo lajman itilize nan sistèm kontwòl likid nan jaden endistriyèl la.
Karakteristik:
1. Kontwòl likid : valv la boul elektrik O-kalite gen fonksyon an nan kontwòl likid, epi yo ka kontwole koule nan likid pa ajiste ouvèti a nan valv la.
Pwodwi prensipal konpayi nou an gen ladan Valv kontwòl Pneumatic 、 Valv boul Pneumatic 、 Valv kontwòl elektrik 、 Fliyò aliyen valv 、 Flowmeter Vortex Precession 、 Kovèti pou troting.
| Type | straight ball valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16,25;ANSI150 |
| Connection type | Flange type |
| Gland form | Platen type |
| Body material | WCB lined f46,CF8 lined F46,WCB lined PFA,CF8 lined PFA |
| Packing | V-type PTFE,flexible graphite |
Asanble Inner Valv
| Spool form | Lined with plastic O-shaped ball core |
| Flow characteristice | fast open |
| Internal materials | WCB,CF8,CF8M with F46 or PFA |
Mekanis egzekitif
| Model | Electric actuator |
| Voltage | 220V,380V |
| Ambient temperature | -30~+70℃ |
| Control signal | 4-20mADC(4-20mA signal feedback can be provided according to customer requirements) |
Posesyon
| Leakage | meets ANSI B16.104 Class Vl |
